Immunohistochemistry - Anti-nmt55/p54nrb Rabbit mAb [98M11M21]

Sample: Paraformaldehyde-fixed, paraffin embedded human ovarion cancer tissue

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: R013497 at 1:200 dilution

Secondary antibody: Goat Anti-Rabbit IgG (H+L), HRP conjugated at 1:1,000 dilution

DAB was used as the chromogen.

Counter stained with hematoxylin.

Positive/negative staining were presented.

Only the secondary antibody was used as the negative control.

Immunohistochemistry - Anti-nmt55/p54nrb Rabbit mAb [98M11M21]

Sample: Paraformaldehyde-fixed, paraffin embedded rat prostate tissue

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: R013497 at 1:200 dilution

Secondary antibody: Goat Anti-Rabbit IgG (H+L), HRP conjugated at 1:1,000 dilution

DAB was used as the chromogen.

Counter stained with hematoxylin.

Positive/negative staining were presented.

Only the secondary antibody was used as the negative control.

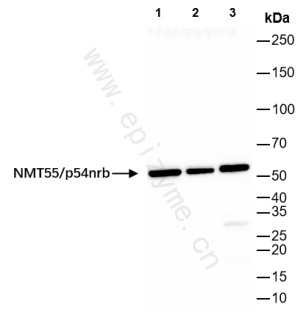

Western Blot - Anti-nmt55/p54nrb Rabbit mAb [98M11M21]

All lanes: R013497 at 1:2,000 dilution

Lane 1: RAW264.7 (Mouse mononuclear macrophage leukemia epithelium cells)

Lane 2: Jurkat (Human T lymphocytic leukemia cell) whole cell lysates

Lane 3: Rat spleen whole tissue lysates

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Rabbit IgG(H+L), HRP Conjugated (Cat. No. LF102) at 1:5,000 dilution

Predicted band size: 54 kDa

Observed band size: 54 kDa

Developed using the ECL technique (Cat. No. SQ201).

Immunofluorescence - Anti-nmt55/p54nrb Rabbit mAb [98M11M21]

Sample: Hela cells

The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.5% Triton X-100 for 10 minutes and then blocked with 5% BSA in 0.1% PBS-Tween for 0.5 hours.

Primary antibodies: R013497 at 1:100 dilution and α-tubulin Mouse Monoclonal Antibody (Cat. No. LF209) at 1:100 dilution

Secondary antibodies: Goat anti-Rabbit (488) at 1:1,000 dilution (shown in green) and Goat anti-Mouse (555) at 1:1,000 dilution (shown in red)

Nuclei were stained with DAPI (shown in blue).
